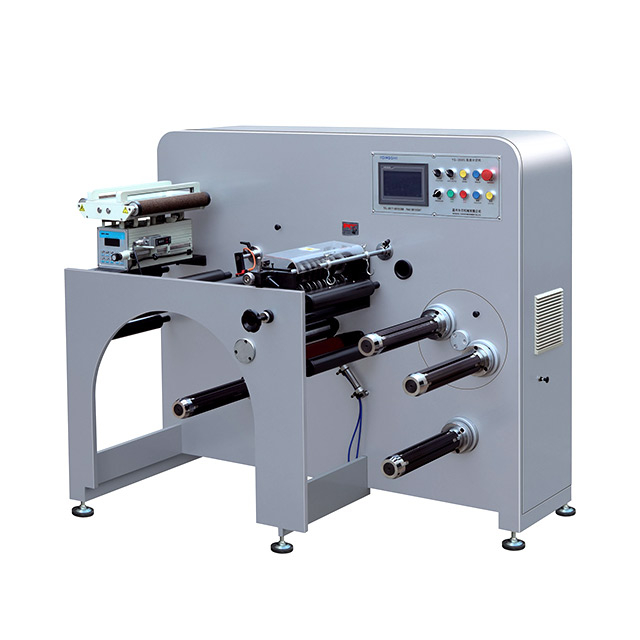

YS-350FG Automatic High Speed Slitting Machine

YS-350FG Automatic High Speed Slitting Machine Servo Transmission, Man-Machine Interface Control
Availability:
Quantity:
  • YS-350FG

  • Wenzhou Yongshi Machinery

product introduction

One researched new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no material no working etc.

Performance and characteristics

Servo control with taper tension system, preset decelarate or stop when less roll detected, web guider with ultrasonic system.

Movable eccentric shear slitting in quick installation design. Standard high pressure waste suction system,plus optional razor blade.

Taper tension control system, the turret rewinder save half time for collect the finished roll.

Imported Germany made best sensor for counting job, if the transparent film, it needs extra accessories.

型号 model YS-350FG YS-450FG
最快分切速度 Max. Slitting speed               300m/min
最大进纸宽度 Max web width 350mm 450mm
最小分切宽度 Min. Slitting width                16mm
剪切刀具数量 Blades installed                8 sets
最大放卷直径 Max. Unwinding Dia                700mm
最大收卷直径 Max. Rewinding Dia                500mm

气压要求 Air supply                0.8mpa
重量 weight                 1500kg
外形尺寸 Size(L*W*H)           1600*1000*1400
