YS-350GT
ＹＯＮＧＳＨＩ
YS-350GT Model Batch-Type Automatic High Speed Die Cutting Machine
Servo motor, human-computer interface control
Scope of application:
It is used for die cutting adhesive label、adhesive tape products, this machine is best choice working with high speed roll label printing machine、flexo printing machine、satellitic printing machine、PS printing machine、batch-type printing machine.
Introduction:
This machine is researched by ourselves. It is incline flat structure, sermi-rotary/rotary die cutting, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.
Feature:
1. Adopt English Trio system、motion controller、 intelligent servo PLC system.
2. Automatic web-guiding system
3. 24000 times/h, 7200m/h die cutting，ensure run fast, high accuracy, working stably
4. use wood die cutter, cheap and durable.
5. Roller automatic inflate, driving system with automatic lubricate system, Automatic tension control
6. It can do vertical and horizontal hot stamping

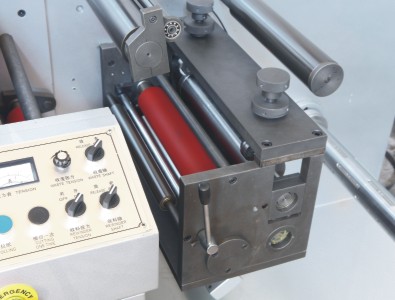

7. It can semi-rotary sheet cutting, also can rotary die cutting
8. All are imported parts, such as electronic parts, bearing, transducer，servo motor and so on.
1
Technical data:
型号 Model | YS-350GT |
最大进纸宽度 Max Feeding width | 320mm |
第一座模切面积 No.1 Cutting area | 300mm×320mm |
第二座模切面积 No.2 Cutting area | 360mm×320mm |
最高速度 Max.speed | 24000车/小时(24000 times/h) |
最大米数 Max.length of meter | 120米/分钟(120m/min) |
最高烫金速度 Max.hot stamping speed | 20000车/小时(20000 times/h) |
模切精度 Position Accuracy | ±0.1mm |
最大放卷直径 Max.unwinder dia | 800mm |
最大放卷直径 Max.rewinder dia | 800mm |
电压 Voltage | 三相380V（3-phase 380） |
总功率 Gross power | 18kw |
重量 Weight | 5000kgs |
外形尺寸 Dimension(L×W×H) | 3700mm×1400mm×1900mm |
