YS-350GT Automatic High Speed Label Hot Stamping And Die Cutting Machine(Two Position)

It is used for die cutting adhesive label、adhesive tape products, this machine is best choice working with high speed roll label printing machine、flexo printing machine、satellitic printing machine、PS printing machine、batch-type printing machine.
This machine is researched by ourselves. It is incline flat structure, sermi-rotary/rotary die cutting, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.
Quantity:
  • YS-350GT
  • YONGSHI

YS-350GT Model Batch-Type Automatic High Speed Die Cutting Machine

Servo motor, human-computer interface control



Scope of application:

It is used for die cutting adhesive label、adhesive tape products, this machine is best choice working with high speed roll label printing machine、flexo printing machinesatellitic printing machinePS printing machinebatch-type printing machine.


Introduction:

This machine is researched by ourselves. It is incline flat structure, sermi-rotary/rotary die cutting, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.



Feature:

1. Adopt English Trio systemmotion controllerintelligent servo PLC system.

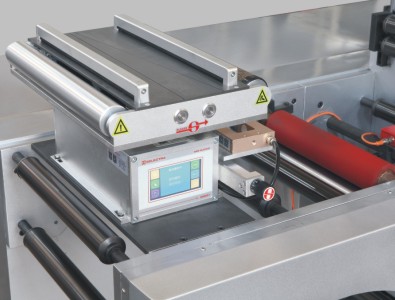

2. Automatic web-guiding system

3. 24000 times/h, 7200m/h die cuttingensure run fast, high accuracy, working stably

4. use wood die cutter, cheap and durable.

5. Roller automatic inflate, driving system with automatic lubricate system, Automatic tension control

6. It can do vertical and horizontal hot stamping

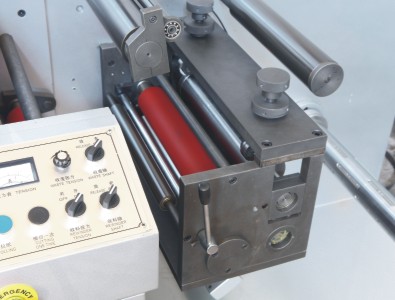

7. It can semi-rotary sheet cutting, also can rotary die cutting

8. All are imported parts, such as electronic parts, bearing, transducerservo motor and so on.

Technical data:

      Model

YS-350GT

   Max Feeding width

320mm

   No.1 Cutting area

300mm×320mm

   No.2 Cutting area

360mm×320mm

   Max.speed

24000/小时(24000 times/h)

   Max.length of meter

120/分钟(120m/min)

   Max.hot stamping speed

20000/小时(20000 times/h)

  Position Accuracy

±0.1mm

   Max.unwinder dia

800mm

   Max.rewinder dia

800mm

   Voltage

三相380V3-phase 380

   Gross power

18kw

   Weight

5000kgs

  Dimension(L×W×H)

3700mm×1400mm×1900mm
