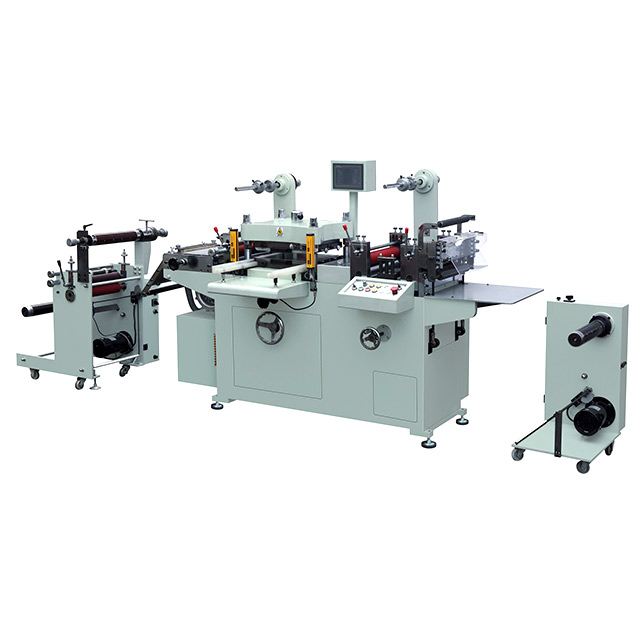

YS-350B/450B Automatic Label Die Cutting Machine

YS-350B/450B Automatic Die Cutting Machine Servo Transmission, Man-Machine Interface Control
Availability:
Quantity:
  • YS-350B/450B

  • Wenzhou Yongshi Machinery

Features:
YS-350/450B die cuntting machine is developed on the basis of A model machine,this machine frame is casted on the whole, machine has large power to run and press, so make machine run stably and durably. It contains an oil gear box which reduces abrasion to the machine during the operation, to make machine long life.

Scope application
This machine is mainly used for electronic insulating material, and virous of shield material, such as PVC、film、mylar、copper foil、aluminum foil、foam and so on.


型号 model YS-350B YS-450B
最大进料宽度 Max. Feeding width 320mm 420mm
模切面积 Cutting area 300*350mm 400*450mm
模切速度 Cutting speed 30-180 press/min 30-170 press/min
定位精准度 Position accuracy ±0.10mm ±0.10mm
主机功率 Power of main motor 2.2kw 3kw
外形尺寸 Size(L*W*H) 2900*1300*1450mm 3000*1400*1450mm
放料直径 Unwinding/rewinding diameter 550mm 550mm
电压 Voltage 220/380v 380v
总功率 Total power 4kw 5.5kw
重量 weight 1700kg 2500kg
