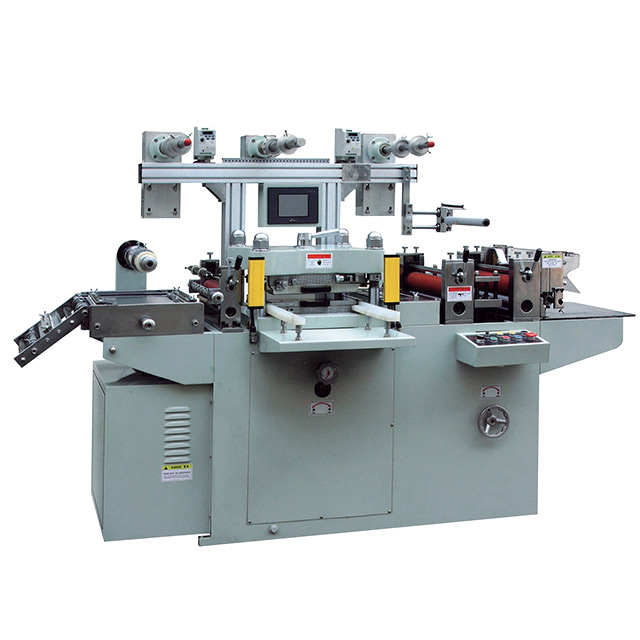

YS-350BII/450BII Automatic Label Die Cutting Machine

YS-350BII/450BII Automatic Die Cutting Machine Servo Transmission, Man-Machine Interface Control
Availability:
Quantity:
  • YS-350BII/450BII

  • Wenzhou Yongshi Machinery

Features:
This machine has the separate unwinding and rewinding equipment, and the material feeding, partial laminating, multi-layer laminating, multi tape sticking all can be done in one machine in one process. Lamination-die cutting-waste discharging-cutting into pieces(rewinding), the whole process controlled by PLC, completed in one time.

Scope application
Various of electronic shield material、PVC、film、mylar、cooper foil、aluminum foil、foam ETC.

Technical parameters:

型号 model YS-350BII YS-450BII
最大进料宽度 Max. Feeding width 320mm 420mm
模切面积 Cutting area 300*350mm 400*450mm
模切速度 Cutting speed 30-180 press/min 30-170 press/min
定位精准度 Position accuracy ±0.10mm ±0.10mm
主机功率 Power of main motor 2.2kw 3kw
外形尺寸 Size(L*W*H) 2300*1300*1500 2550*1400*1650mm
收放料直径 Unwinding/rewinding diameter 550mm 550mm
电压 Voltage 220/380v 380v
总功率 Total power 4.5kw 6kw
重量 weight 1700kg 2500kg
